| Branch/ Small Office |
Small Business | Mid-Size Business | Large Enterprise/Campus | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | 20/30/50 | 30 LTE | One | 210/310 | 305 | 380 | 580 | 710 | 1350 | 2500 |
| Product Code | BPL-021 BPL-031 BPL-050 |
BPL-031- LTE-E-T |
BPL-ONE | BPL-210 BPL-310 |
BPL-305 | BPL-380 | BPL-580 | BPL-710 | BPL-135 | BPL-2500-* |
| Capacity | ||||||||||
| Ethernet WAN Ports | 2/3/5 | 2 | 2 (GbE) | 2+/3 (GbE) | 3 (GbE) | 3 (GbE) | 5 (GbE) | 7 (GbE) | 13 (GbE) | 12 (GbE) |
| LAN Ports | 4 (GbE) | 4 (GbE) | 8 (GbE) | 7 (GbE) | 3 (GbE) | 3 (GbE) | 3 (GbE) | 3 (GbE) | 3 (GbE) | 8 (GbE)/ 2 (10G SFP+)* |
| Simultaneous Dual-Band 802.11a/b/g/n Wi-Fi AP |  |
|
1 | |
|
|
|
|
|
|
| Embedded 4G LTE | |
1 | |
|
|
|
|
|
|
|
| SIM Card Size | |
Mini-SIM (2FF) | |
|
|
|
|
|
|
|
| USB WAN Modem Port1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Recommended Users2 | 1-25 | 1-25 | 1-50 | 1-50 | 50-500 | 50-500 | 300-1000 | 500-2000 | 1000-5000 | 5000-20000+ |
| Router Throughput3 | 150Mbps | 150Mbps | 600Mbps | 200Mbps | 1Gbps | 1Gbps | 1.5Gbps | 2.5Gbps | 5Gbps | 8Gbps |
| Core Functionality | ||||||||||
| 802.1q VLANs supported | 16 | 16 | 16 | 16 | 128 | 128 | 128 | 128 | 128 | 128 |
| Load Balancing & Failover |  |
|
|
|
|
|
|
|
|
|
| Load Balancing Algorithms | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Drop-In Mode | |
|
|
|
|
|
|
|
|
|
| Inbound Load Balancing | |
|
|
|
|
|
|
|
|
|
| InControl Cloud Management | |
|
|
|
|
|
|
|
|
|
| PepVPN/SpeedFusion Functionality | ||||||||||
| PepVPN | % |
|
|
|
|
|
|
|
|
|
| SpeedFusion Hot Failover | |
|
^ |
|
^ |
|
|
|
|
|
| SpeedFusion WAN Smoothing | |
|
^ |
|
^ |
|
|
|
|
|
| SpeedFusion Bandwidth Bonding | |
|
^ |
|
^ |
|
|
|
|
|
| Number of PepVPN/SpeedFusion Peers4 | 2 | 2 | 2^ | 2 | 2/20& | 20 | 50 | 300 | 800 | 4000 |
| PepVPN/SpeedFusion Throughput | 30Mbps | 30Mbps | 30Mbps^ | 50Mbps | 150Mbps^ | 150Mbps | 200Mbps | 400Mbps | 800Mbps | 2Gbps |
| IPsec/L2TP/PPTP VPN Functionality | ||||||||||
| IPsec VPN (Network-to-Network)5 | |
|
|
|
|
|
|
|
|
|
| Number of IPsec Tunnels | 2 | 2 | 2 | 2 | 20 | 20 | 50 | 150 | 400 | 800 |
| L2TP VPN Server | |
|
|
|
|
|
|
|
|
|
| PPTP VPN Server | |
|
|
|
|
|
|
|
|
|
| Recommended PPTP VPN Users | 15 | 15 | 15 | 15 | 50 | 50 | 100 | 200 | 500 | 1000 |
| AP Controller Functionality | ||||||||||
| Can Manage Pepwave AP Series | |
|
|
|
|
|
|
|
|
|
| Maximum Number of AP Supported | 10 | 10 | 10 | 10 | 50 | 50 | 100 | 250 | 500 | 1500 |
| Can Manage Remote AP & Multiple Config Profiles 6 | |
|
|
|
|
|
|
|
|
|
| Advanced QoS Functionality | ||||||||||
| Bandwidth Usage Monitor | |
|
|
|
|
|
|
|
|
|
| QoS for VoIP and E-Commerce | |
|
|
|
|
|
|
|
|
|
| User Groups Bandwidth Control | |
|
|
|
|
|
|
|
|
|
| Web Blocking | |
|
|
|
|
|
|
|
|
|
| Hardware | ||||||||||
| LACP (802.3ad) NIC Bonding | |
|
|
|
|
|
|
|
|
* |
| Power Consumption | 15W | 15W | 15W | 15W | 50W | 50W | 50W | 70W | 70W | 230W |
| 1U Rackmount | |
|
|
|
|
|
|
|
|
|
| High Availability | |
|
|
|
|
|
|
|
|
|
| LAN Bypass | |
|
|
|
|
|
|
|
|
|
| Dual Hot Swap Power Supply |
|
|
|
|
|
|
|
|
|
|
| Certifications | ||||||||||
| FCC, CE, RoHS | |
|
|
|
|
|
|
|
|
|
| Warranty | 1-Year Limited Warranty | |||||||||
1 For a list of supported modems, please refer to http://www.peplink.com/modem.
2 Recommendation for sizing purposes only. No software restrictions applied.
3 Router Throughput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments. Figures apply to the latest hardware revision.
4 Number of peer Peplink or Pepwave devices you can connect using SpeedFusion VPN.
5 IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices.
6 Balance 20/30/30 LTE/50/One/210/310 comes with AP Controller Standard, which supports one configuration profile with multiple SSIDs, meaning that all APs will share the same configuration, and you can only manage APs on the local physical LAN. Balance 305/380/580/710/1350/2500 comes with AP Controller Pro, which supports multiple configuration profiles with multiple SSIDs, and you can manage remote APs outside the local physical LAN.
+ Balance 210 has an extra WAN port which can be activated through license key.
^ PepVPN is supported on all models. SpeedFusion is an optional feature.
& Balance 305 supports 2 PepVPN peers. With purchase of SpeedFusion License, the Balance 305 supports up to 20 SpeedFusion peers.
* Balance 2500 are available different configurations. Please refer to ordering information for details.
% Balance 20/30/50 requires firmware 6.1 to support PepVPN.
Ordering Information for Balance 30 LTE
| Product Code | Carrier | Description |
|---|---|---|
| BPL-031-LTE-E-T | 4G LTE/ HSPA+ (EU) |
Embedded 4G model supporting 4G LTE for EU and worldwide GSM carriers and providing automatic fallback to 3G as needed. Technologies and frequency bands supported: 4G LTE (Band 1/3/7/8/20); WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+ (800/850/900/1900/2100 MHz). |
Ordering Information for Balance 2500
| Product Code | Product Name | Description |
|---|---|---|
| BPL-2500 | Balance 2500 | (For copper-based LAN). Equipped with 8 (GbE) LAN ports and supporting LACP (802.3ad) NIC bonding. |
| BPL-2500-SFP | Balance 2500 | (For fiber-based LAN). Equipped with two 10G SFP+ LAN ports. See a list of compatible SFP+ modules here. |
For the ordering information of all other Balance models, please refer to the above comparison diagram
Feature Add-On for AP Controller
Feature Add-On for B210
| Product Code | Product Name | Description |
|---|---|---|
| BPL-210-LC-WAN | WAN Port Activation License | Activate WAN 3 on Balance 210 |
Unbreakable VPN – Powered by SpeedFusionTM Hot Failover Technology

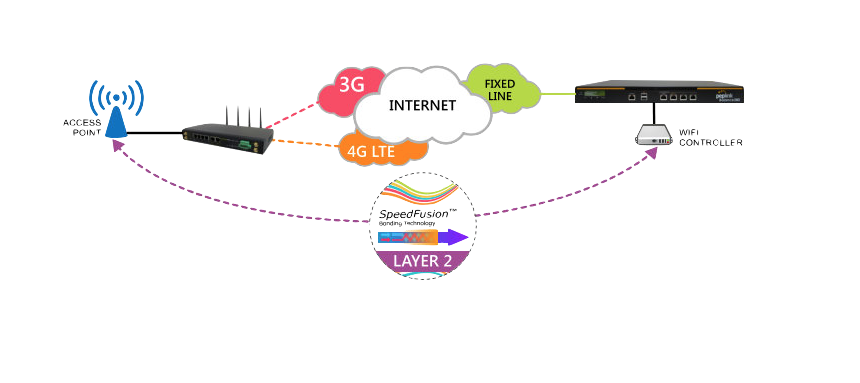

With other VPN technologies, WAN failover terminates existing VPN connections, resulting in costly downtime. SpeedFusion Hot Failover maintains secure tunnels over all available WAN links to keep you up and running when a connection drops out. If a WAN link fails, SpeedFusion Hot Failover instantly and seamlessly routes traffic to a working tunnel for uninterrupted VoIP sessions, unbreakable VPNs, and all day, every day productivity.
