ATCOM Rainbow 2 & 2W










Phone functionsPhone functions:3 ways to make or receive call – handset/headset/hand-free speaker;Support caller ID , auto answer , DND and call reject;Support speed dial , redial , mute and call holding;Support point to point calls via IP address and SIP URL;

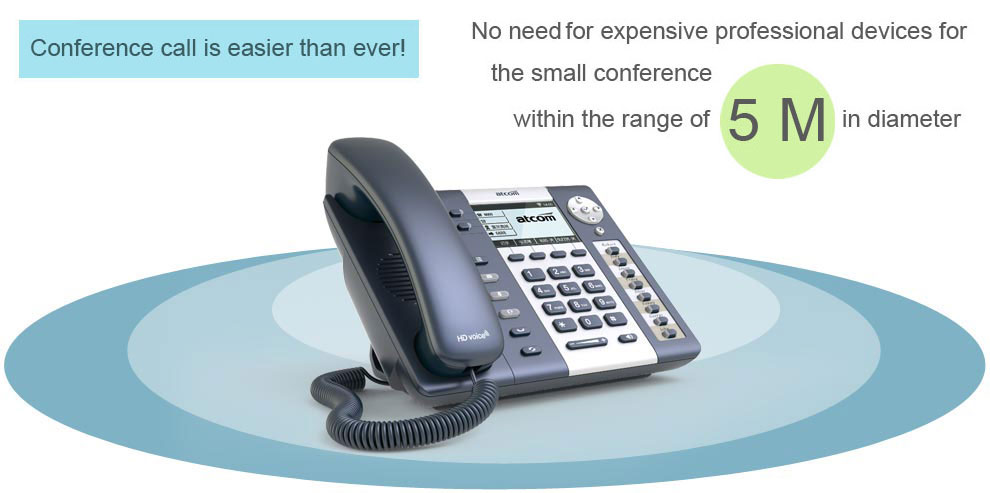

Support 3 ways conference call;

Support call transfer( blinded transfer , attendant transfer and semi-attendant transfer);

Support call forward ( always forward , busy forward or no answer forward);

Support hotline and flexible dial plan configuration;

IP PBX function:

BLF ( busy line field) , BLA (line sharing) , BLF list

Anonymous Call, Anonymous Call Rejection;

Synchronization Message Waiting Indicator (MWI);

Woicemail , call recording;

Call on hold , call pick up;

Paging and intercom;

Hardware Specification2*263MHZ dual core MIPS processor;3.25 inch 132*52 pixel , FSTN 4 level grey LCD;43 keys including 12 programmable keys;Dual RJ45 10.100Mhz Ports;2 RJ9 ports ( for handset and headset);

1 RJ45 port for extension modules;

Power adapter AC 90-240V , DC 5V1 A;

Wtandby power consumption <1W , working power consumption 2W;

Support PoE ( power over ethernet);

Support Rainbow E BLF extension modules;

Working temperature : -10 ℃– 50 ℃;

Working humid : 10%-95%;

Network featuresSupport SIP V1(RFC2543), V2(RFC3261);Support backup server;Support proxy server and point to point connection;Support IP/DHCP/PPPoE dial;Support FTP/DHCP/PPPoE client;

Support Telnet/HTTP/HTTPS service;

Support SNTP protocol;

Support DNS SRV(RFC3263;

Support DNS client and buil-in NAT/DHCP service;

Support STUN;

Support 3 DTMF ways,RFC2833 and SIP INFO;

Support router and bride mode;

Logout on web GUI;

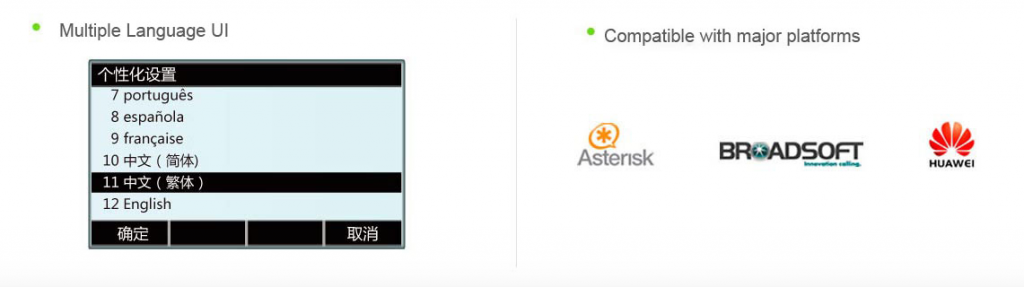

Software featuresUI and WEB Support multiple language;User friendly UI and WEB design;Configuration wizard for first time use;Support 200 contacts in phone book and 200 call history record;Support dial assistant , match the number in smart ways;

Support black list;

Auto adjusted background light ;

Adjustable level of background light brigntness;

Voice featureSupport HD voice codec L16G and G.722;Support G.711a/u,G.726,G.729a/b,G.723,iLBC codes;Support VAD(Voice Activity Detector) and CNG(conformation noise gain);Support AJB ( auto Jit buffer) , AEC ( voice echo canceller) AGC ( voice gain control);10 broadband rings and 2 customized rights by users; ManagementSupport 3 ways to manage the phones : Web GUI , phone keyboard and auto configuration in FTP/TFTP/HTTP/HTTPS/PnP;Configuration wizard on web UI;Support SNMP; SecuritySupport VLAN;Support L2TP VPN;Support 802.1X;Support 2 different access levels- admin and user;Support SRTP and HTTPS protocol ( client/server); PackageDimension of single unit (17.0 x 18.2 x 13.2);Weight :1.5KG;Packing size (26.6x 20.7 x 7.5)cm;Preserve temperature -40 – -70℃;Preserve humid level: 10-95%;
R2 Models PoE Wifi
R2 Y N
